TYPE B AC DC SENSITIVE PROTECTION: Detects sinusoidal AC, pulsating DC and smooth DC residual currents generated by power electronic systems where standard Type AC or Type A RCDs may not provide suitable protection.
-
FOR EV PV AND INDUSTRIAL SYSTEMS: Designed for applications requiring Type B residual current protection, including EV charging equipment, solar PV inverters, VFD motor drives, UPS systems and industrial machinery.
-

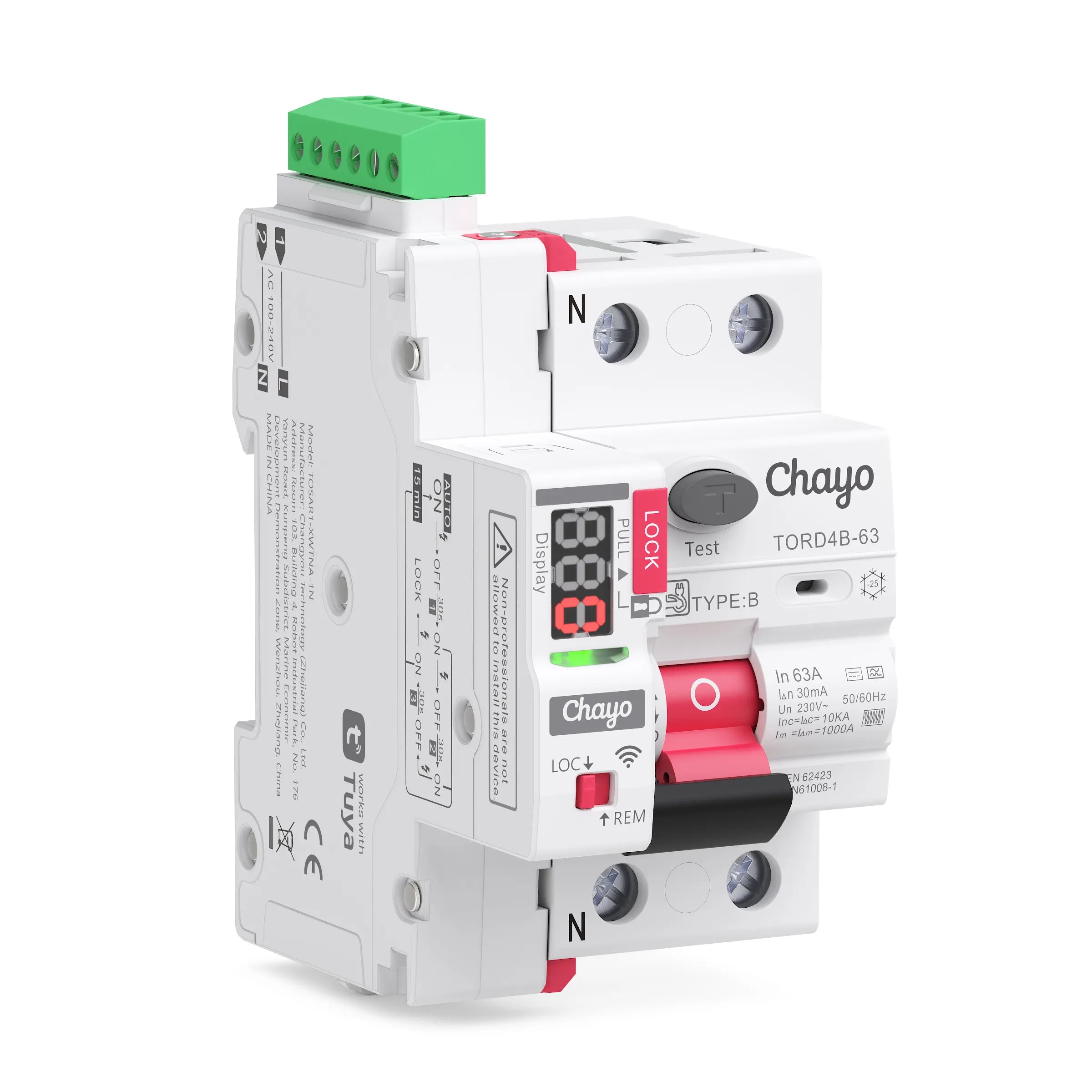

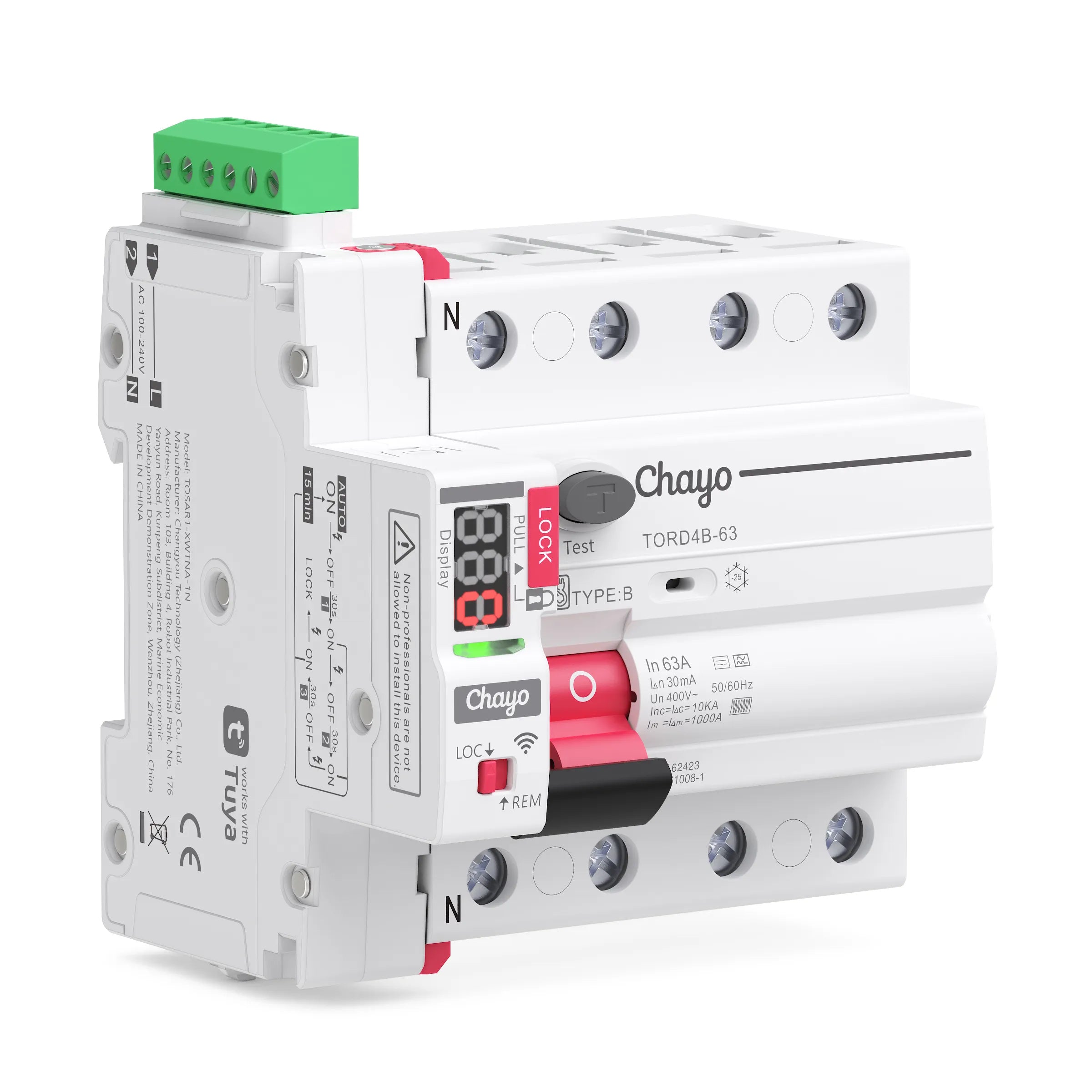

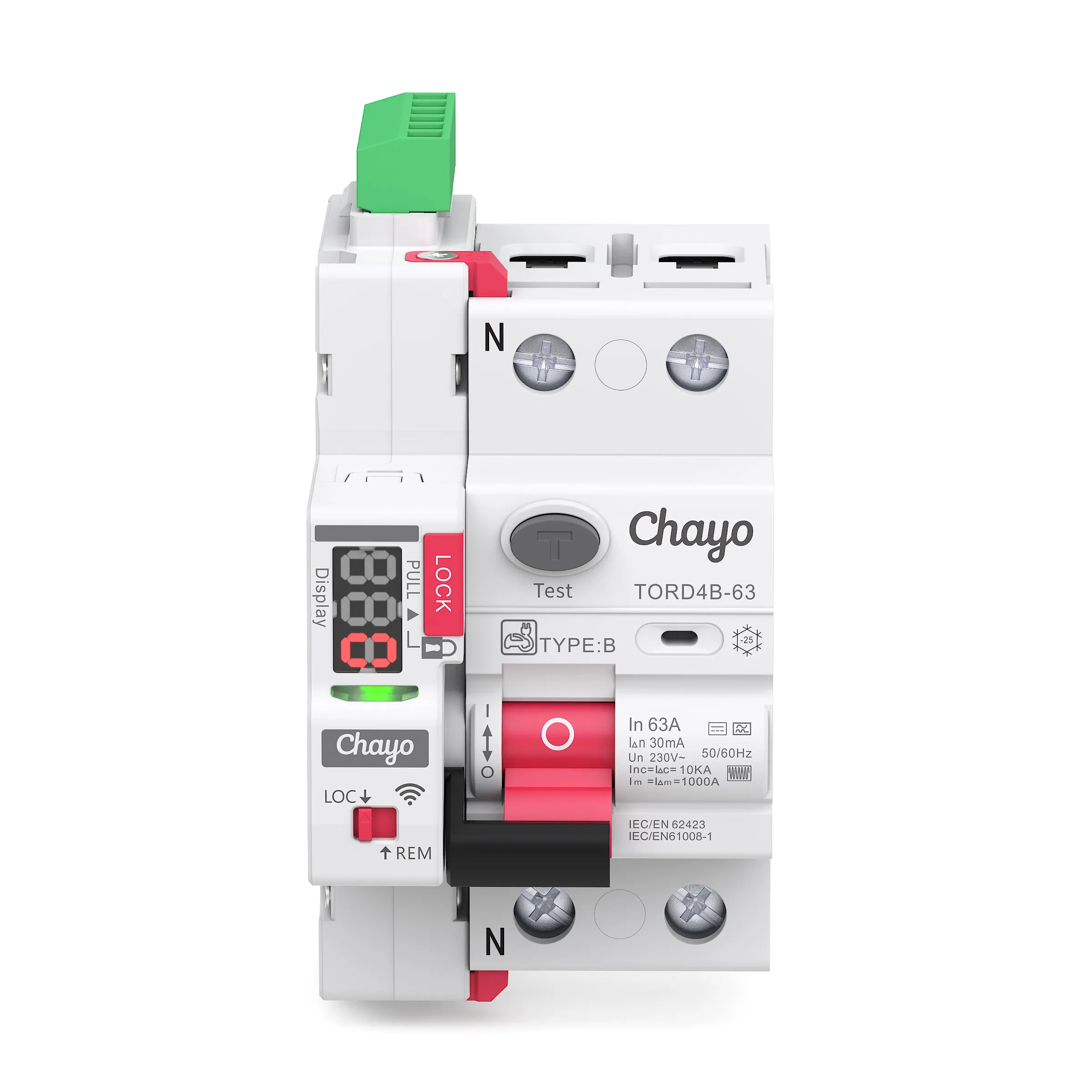

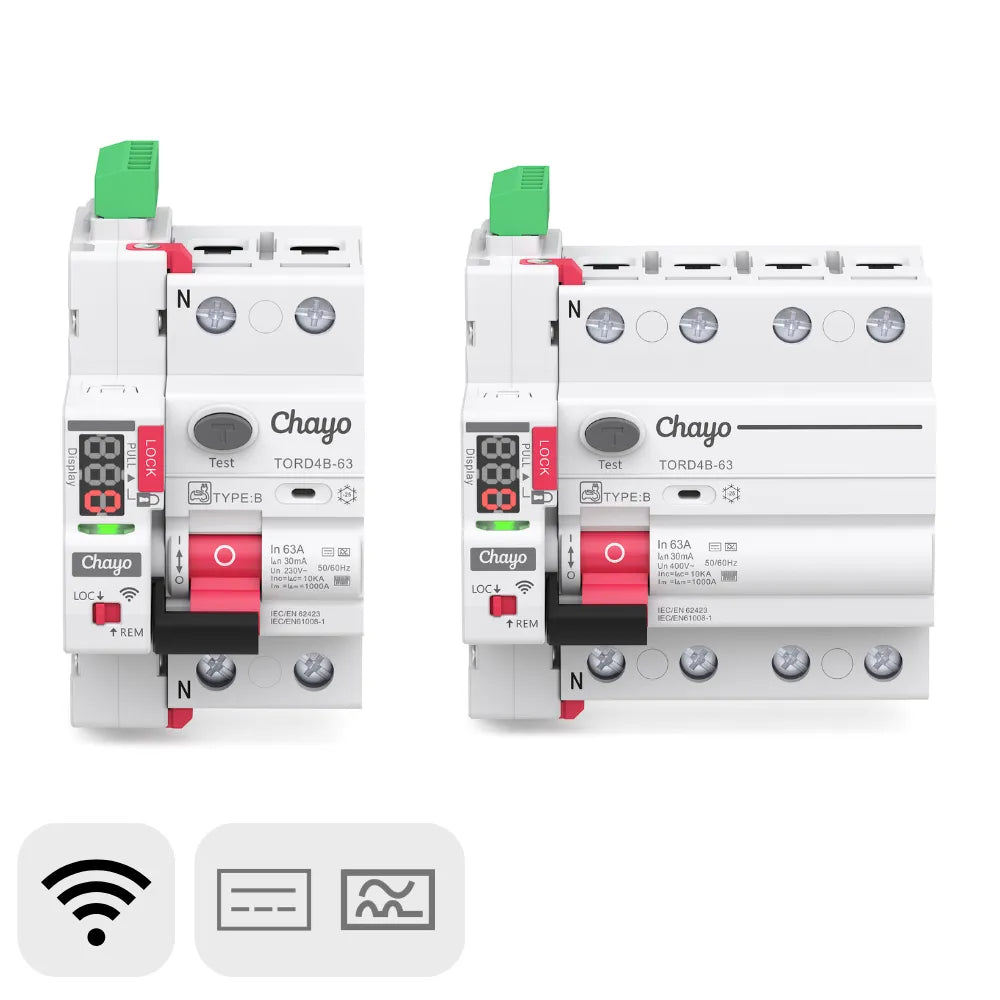

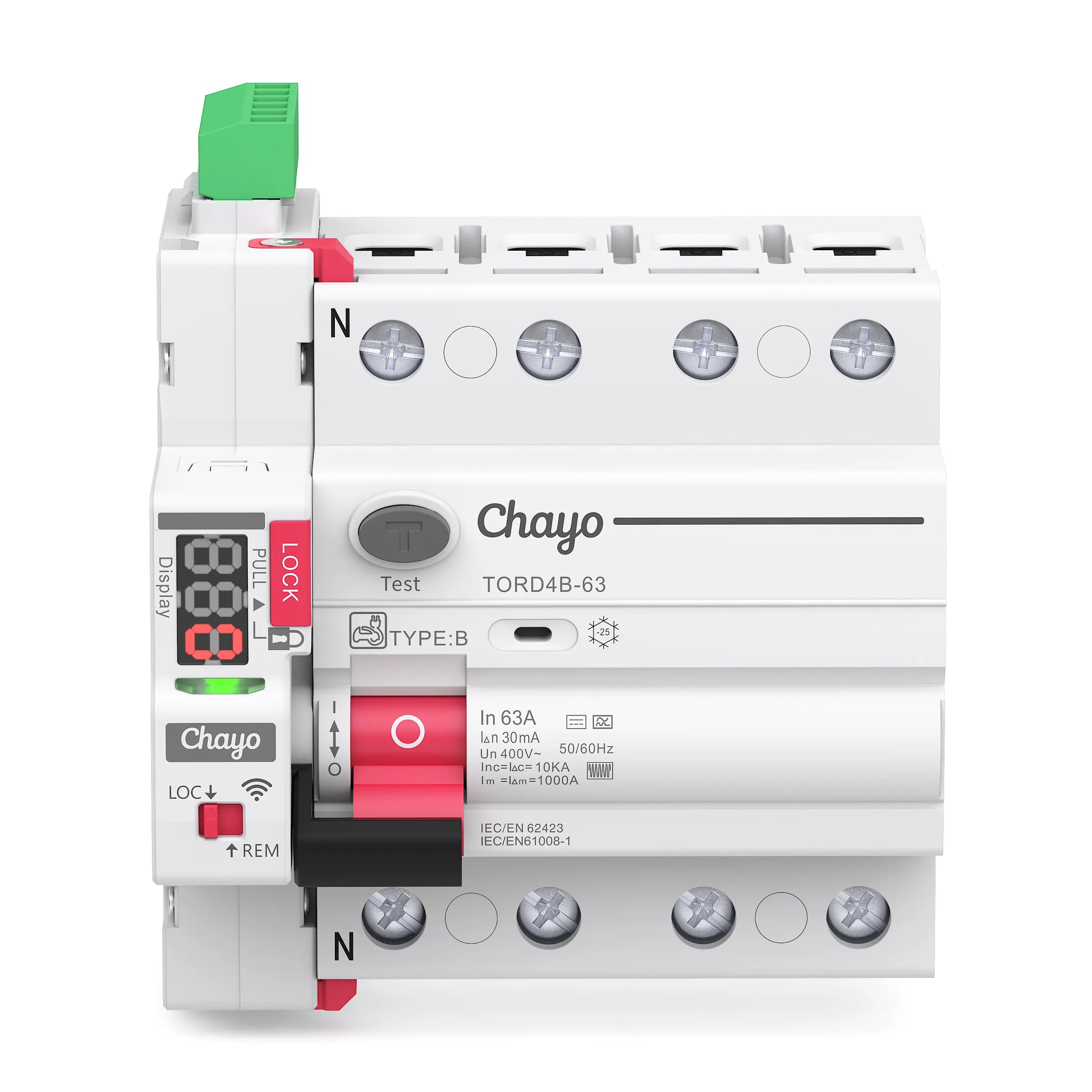

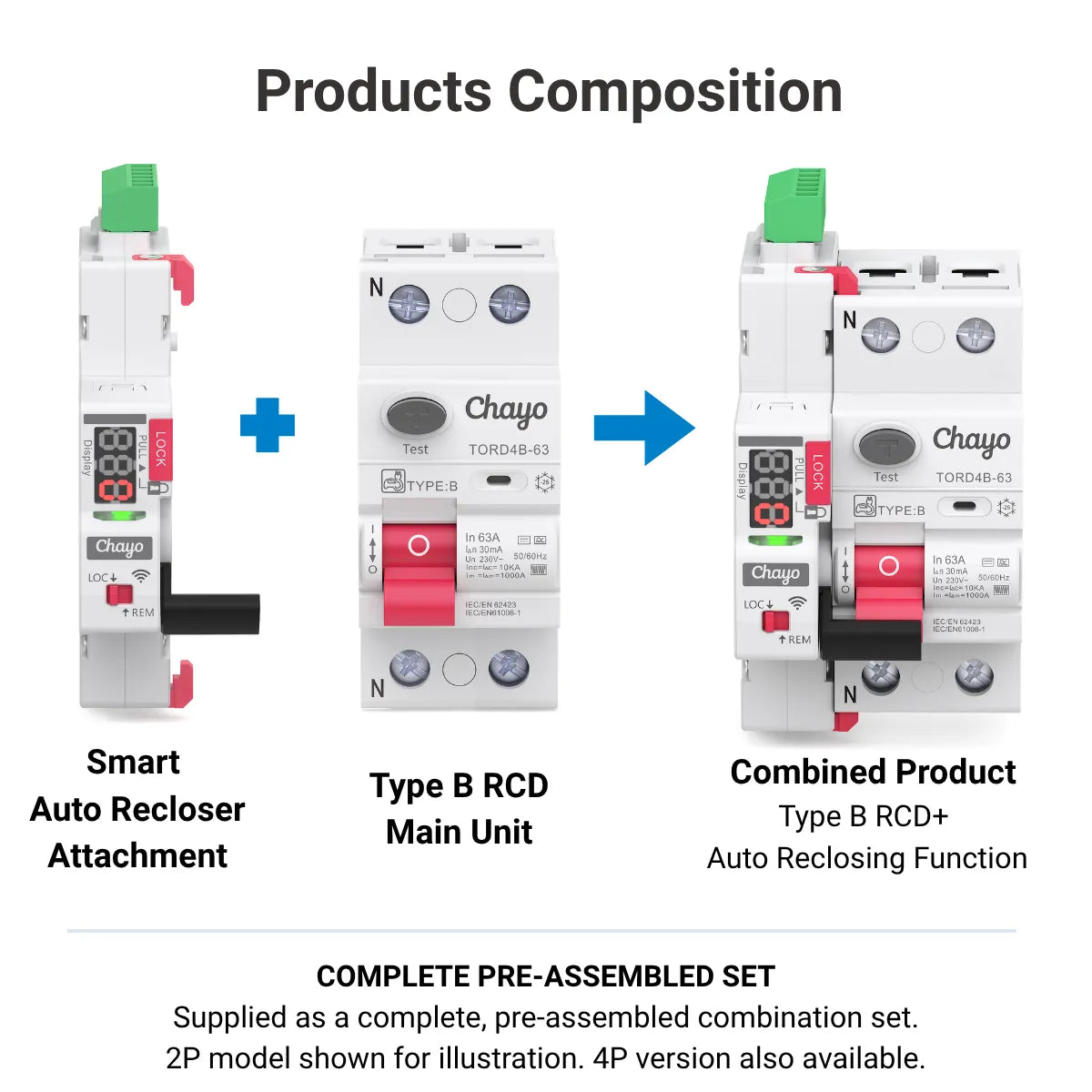

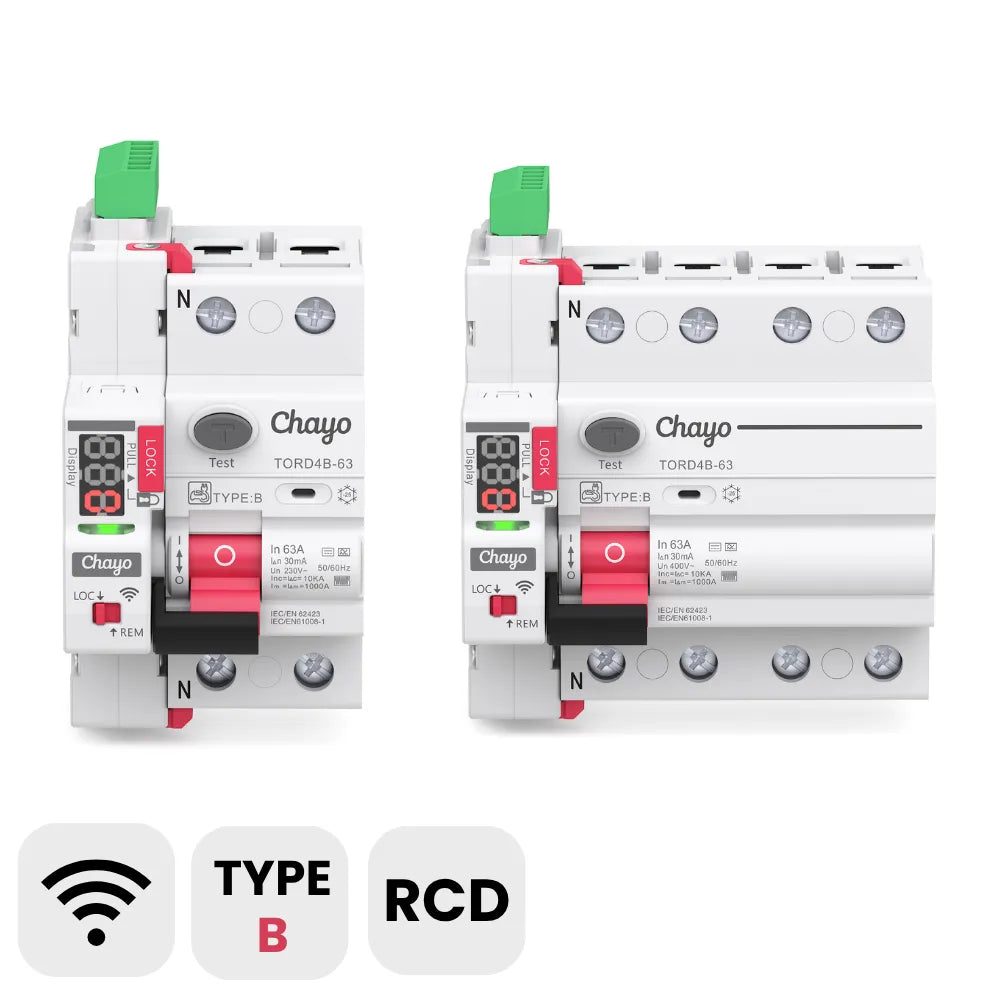

2P AND 4P CONFIGURATIONS: Available for single phase 1P+N and three phase 3P+N systems with rated current and residual current options for different project requirements.
-

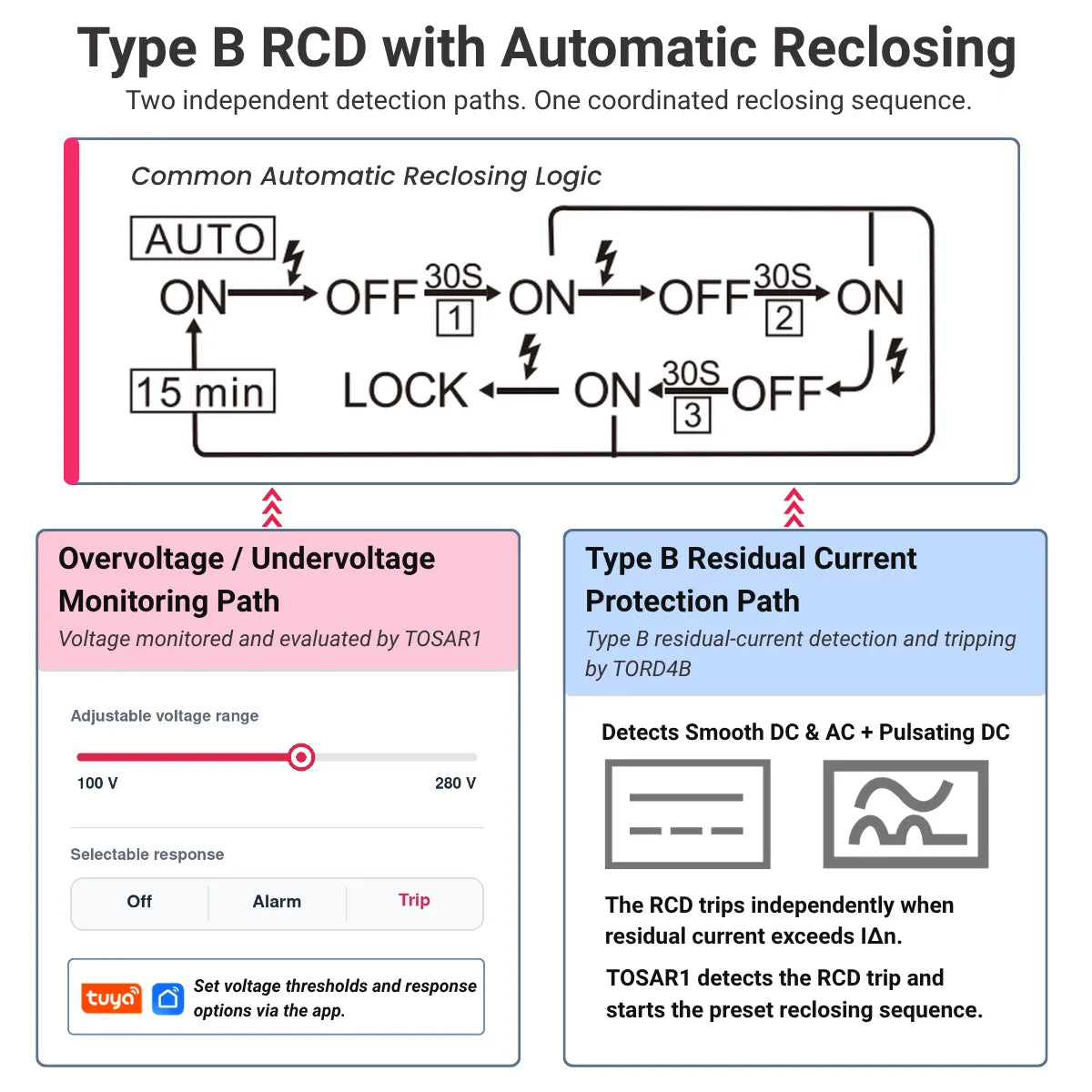

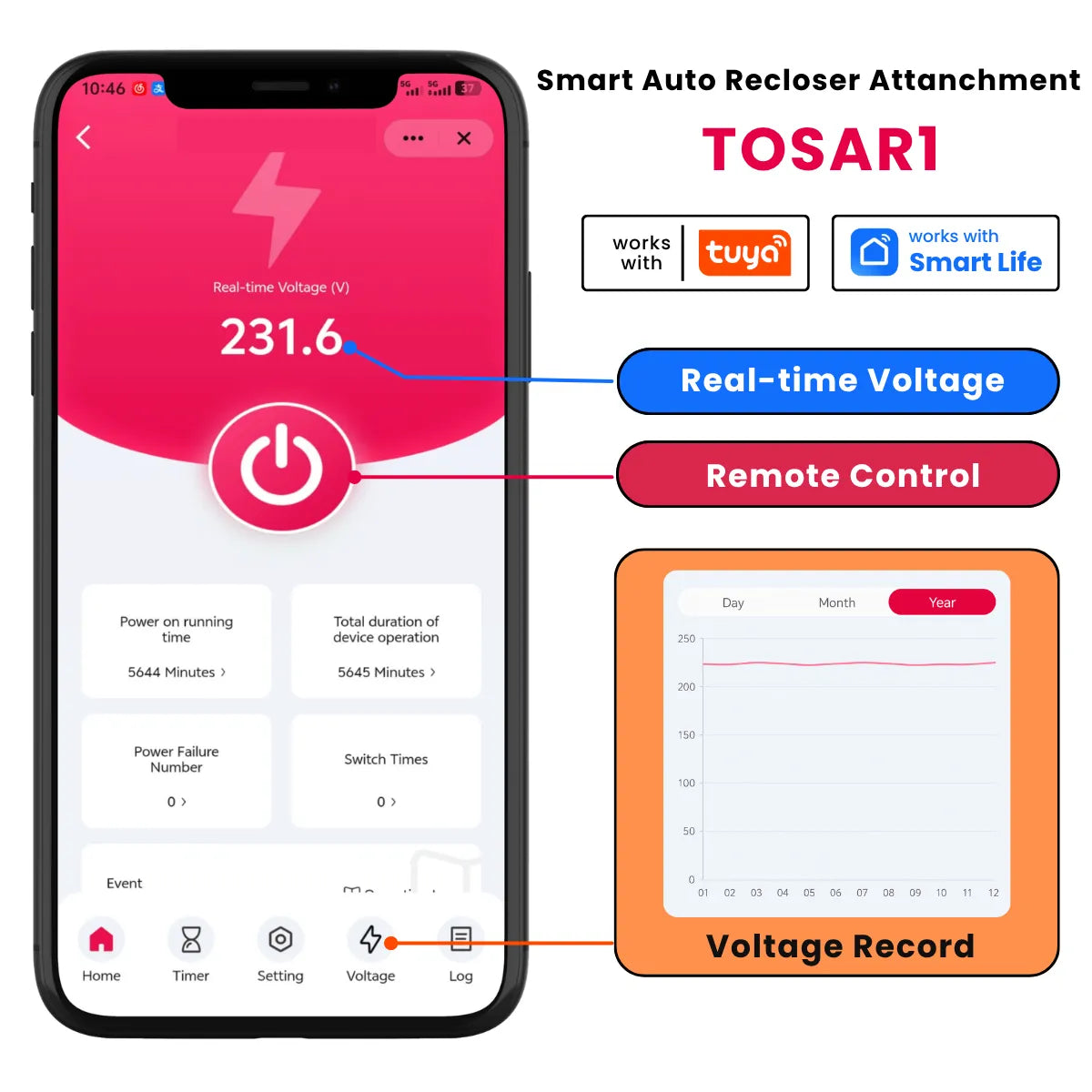

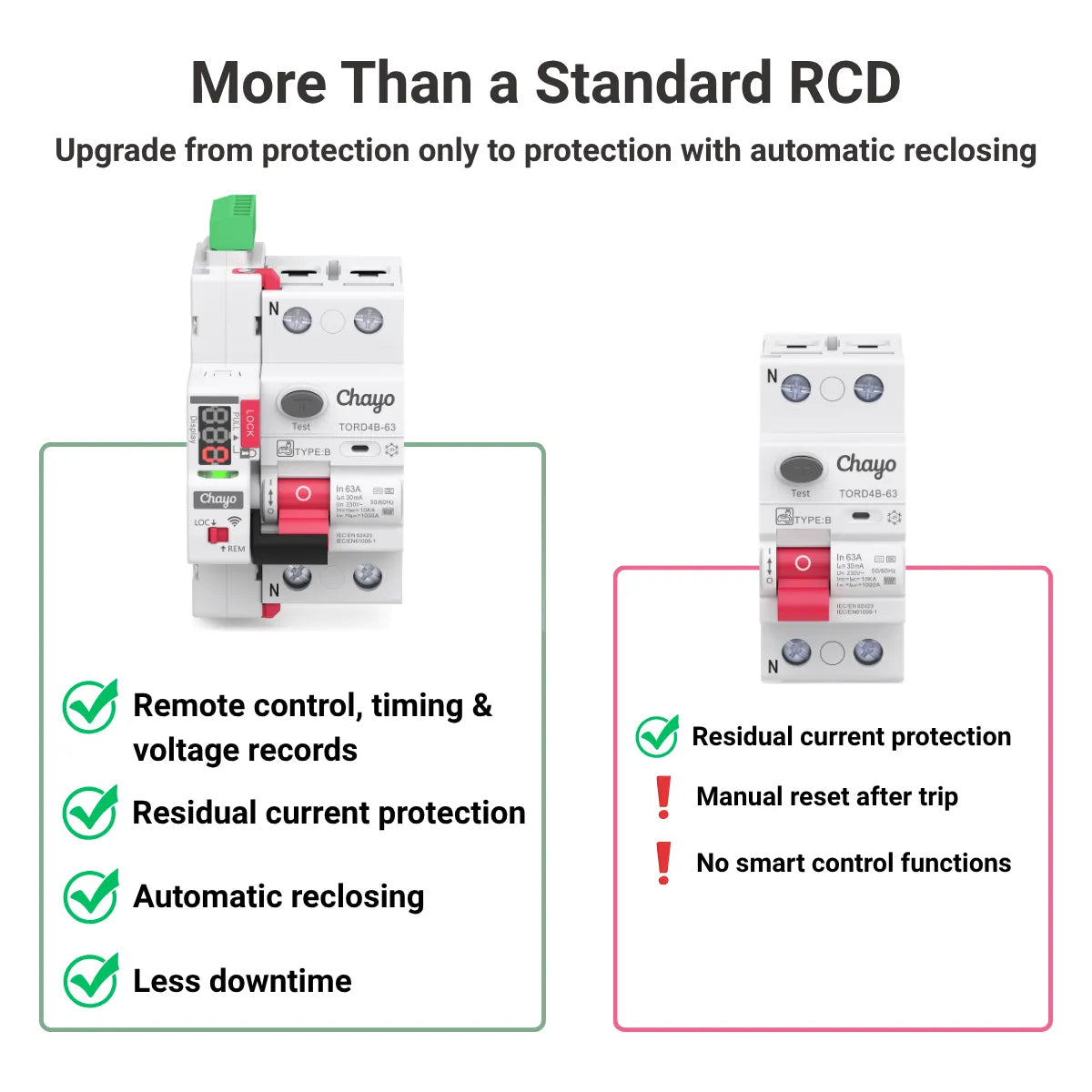

WIFI CONTROL AND AUTOMATIC RECLOSING: Provides Smart Life remote ON and OFF control through 2.4GHz WiFi and performs up to three automatic reclosing attempts at 30 second intervals.
-
REQUIRES UPSTREAM OVERCURRENT PROTECTION: This Type B RCCB set provides residual current protection but does not independently protect against overload or short circuits. Install a suitable upstream MCB or fuse and evaluate automatic restart safety for the connected EV, PV or industrial equipment.
| Item | TOSAR-RD4B |
| Product Type | Wi-Fi Auto Recloser RCD RCCB |
| Standard | IEC/EN 61008-1 |
| Leakage Type | Type B |
| Leakage current value | 30mA, 100mA, 300mA |
| Rated Voltage | 2p:230V~ 4p:400V~ |
| Rated Current | 40A, 63A |
| Reclosing Time Interval | 30s-30s-30s |
| Reclosing Cycle | 3 |
| Electrical Life | 10000 |
| Communication Protocol | 2.4GhZ Wi-Fi |
| APP | TUYA SMART LIFE |
| Smart Function | Remote Control |
| Manufacturer | Changyou Technology |
| Brand | Chayo |
